Kordz ONE Cat6A F/UTP Network Cable Reel-in-box (Blue)

ONE Cat6A F/UTP Network Cable

ONE-CAT6A-FUTP

Features

Kordz ONE Cat6A F/UTP Network Cable is carefully engineered for professional integrators who need a reliable, high-bandwidth and cost-effective AV category cabling solution. Made with solid OFC conductors, this 23AWG cable delivers optimal performance, featuring a 7.4mm jacket diameter that allows for straightforward installation, even in tight spaces. Supporting 10Gbps network connectivity over distances up to 100 metres, this cable is ideal for a variety of IP networking applications, including SDVoE. It complies with IEEE802.3bt PoE++ at 100W and meets ANSI/TIA-568.2-D Category 6A standards, making it suitable for HDBaseT connectivity. Available in multiple colours, the cable offers options for CPR Dca LSZH or UL444 CM PVC fire ratings and is packaged in a Reel-in-Box for easy identification and handling on-site, complete with metre markings to monitor cable usage. Engineered to surpass industry standards, the Kordz ONE Cat6A F/UTP Network Cable ensures reliable and efficient connectivity, backed by the Kordz commitment to ‘Connectivity Assured’.

Product outline

• ETL verified ANSI/TIA-568.2-D Category 6A compliant
• Supports 10Gbps up to 100m
• Suitable for HDBaseT applications
• 23AWG solid OFC conductors with cross separator for optimal installation stability
• Supports IEEE802.3bt PoE++ at 100W
• Option of CPR Dca LSZH and UL444 CM PVC fire ratings
• Metre-marked for precise installation
• Available in various colours
• Packaged in a convenient Reel-in-Box
• Kordz Lifetime Warranty

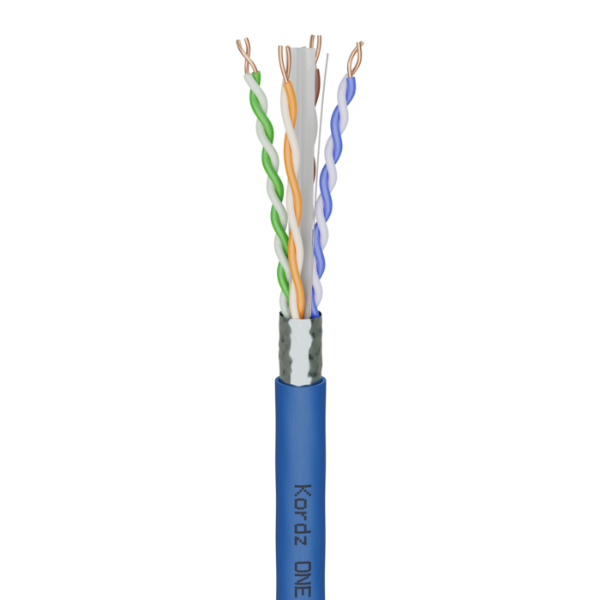

CONSTRUCTION

• Conductor: Solid OFC annealed bare copper wire 0.561 +0/-0.015mm [23AWG]
• Insulation: Orange & Brown Pairs – Polyethylene (PE), 1.12+/-0.05 mm Blue & Green Pairs – Foam PE, 0.97 +/-0.05 mm
• Twisting: 4 twisted pairs, 2 cores to each pair
• Twisted Pair Colour Code: 1 – white/blue, 2 – white-orange/orange, 3 – white/green, 4 – white-brown/brown
• Cable Lay-Up: 4 pairs with different pitches, non-metallic cross separator (spine)
• Shielding: Drain wire [26AWG], Mylar tape laminated with aluminium foil as a shield
• Outer Diameter: 7.4 +/-0.3 mm

MECHANICAL

• Bend Radius: without load ≥ 29.6mm /1.16”, with load ≥ 59.2mm /2.33”
• Temperature Range: During Operation: -20°C to 60ºC During Installation: 0°C to 50ºC

ELECTRICAL

• DC Resistance: ≤ 9.38Ω / 100m at 20ºC
• Resistance Unbalance: ≤ 2% at 20ºC
• Insulation Resistance (500V): ≥ 5000MΩ / km at 20ºC
• Mutual Capacitance: ≤ 5.1 nf / 100m at 1khz
• Capacitance Unbalance (pair to ground): ≤ 160 pf / 100m at 1khz
• Nominal Velocity of Propagation: nom. 67% c
• Test Voltage: 1kV DC / 1 min

MATERIALS/MARKING & FIRE RATINGS

• LSZH
  Kordz ONE Solid OFC UHD/4K Video Network Cable. ETL VERIFIED TIA-568-C.2 (100372289CRT-001c) LSZH CAT6A F/UTP 23AWG. IEC 60332-3-25
• FRPVC
  Kordz ONE Solid OFC UHD/4K Video Network Cable. ETL VERIFIED TIA-568-C.2 (100709714CRT-002c) CM CAT6A F/UTP 23AWG. UL 444 CM

Colour

• Blue: RAL 5015

PACKAGING

• Roll Size: 152.5m / 500ft – metre marked
• Carton Dimensions: 330mm (W) x 265mm (D) x 340mm (H) / 13.0in (W) x 10.4in (D) x 13.4in (H)
• Volume: 0.03m2 / 1.05 cu. ft.
• Gross Weight: 9.8kg / 21.6lbs
