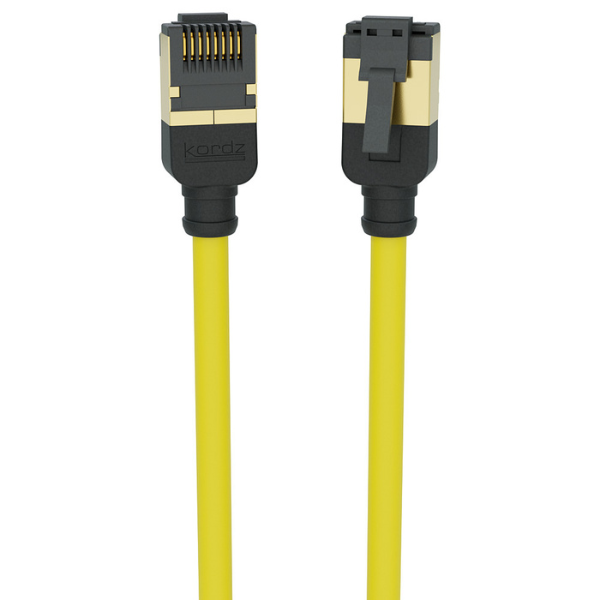

Kordz PRS SlimCat™ Cat6A Patch Cord
Ultra-Slim, High-Performance Cat6A Shielded Patch Cable
Overview
Kordz PRS SlimCat™ Cat6A Patch Cords are engineered to be flexible, slim and ideal for fast Gigabit Ethernet in high performance AV installations with stranded 28AWG copper. The Kordz PRS SlimCat™ Patch Cord features a custom designed compact RJ45 connector (Patent Pending) with a robust 2000 cycle latching tab, is designed to be the most resilient connector in the world. Its slim profile and minimal operational depth challenges what’s possible in high performance installations.
All Kordz PRS SlimCat™ Patch Cords exceed ANSI/TIA-568.2-D Category 6A standards for all frequencies from 1 to 500Mhz and individually performance tested with a unique downloadable test report.
Features
- Exceeds ANSI/TIA-568.2-D Category 6A standards (1 to 500MHz)
- Certified data rate of 10 Gbps and supported rate ≥ 10 Gbps (Gigabit Ethernet)
- 28AWG stranded U/FTP construction with ultra-slim 4.8mm diameter
- World’s smallest operational depth and most flexible CAT6A U/FTP patch cord
- Each cable individually tested with downloadable report
- Patent-pending compact RJ45 with 2000-cycle robust latch tab
- UL 444 CMG fire-rated PVC composite jacket
- Anti-corrosion gold-plated shielded connector
- Available in 8 colours: Black, Blue, Grey, Green, Purple, Yellow, Red & White
Application Standards
- ANSI/TIA-568.2-D
- IEC11801
- EN50173
Performance Standards
- ≤ 10.0m: Category 6A Component Tested
- > 10.0m: Category 6A Channel Tested
- Certified Bandwidth: 1 to 500 MHz
- Supported Bandwidth: ≥ 500 MHz
Wiring Method
- T568-B
Mechanical Specifications
- Cable Diameter: 4.8mm / 0.19in (28 AWG)
- Max Pulling Tension: 80 kgf/cm²
- Bend Radius: 20.0mm / 0.79in
- Recommended Operational Depth: 40.0mm / 1.57in
- Mating Cycles (max): 1000 cycles
- Temperature Range: Installation, Operation, and Storage – up to 75°C
Construction
- Conductors: Solid 28 AWG Oxygen-Free Stranded Copper
- Insulation: Skinned Foam PE
- Shielding: AL-Mylar per pair, 100% coverage
- Jacket: UL CMG-rated PVC Composite
- Connector Material: Nylon Composite
- Contact Material: Solid Oxygen-Free Copper, 50µ” Gold-Plated
- Contact Type: 3-prong for solid and stranded conductors
- Strain Relief: Injection-Moulded PVC
Electrical Characteristics
- Conductor Resistance: 223Ω/km
- Insulation Resistance: 10MΩ min @ 100V DC
- Characteristic Impedance: 100Ω
- Dielectric Strength: 500V AC for 1 minute
